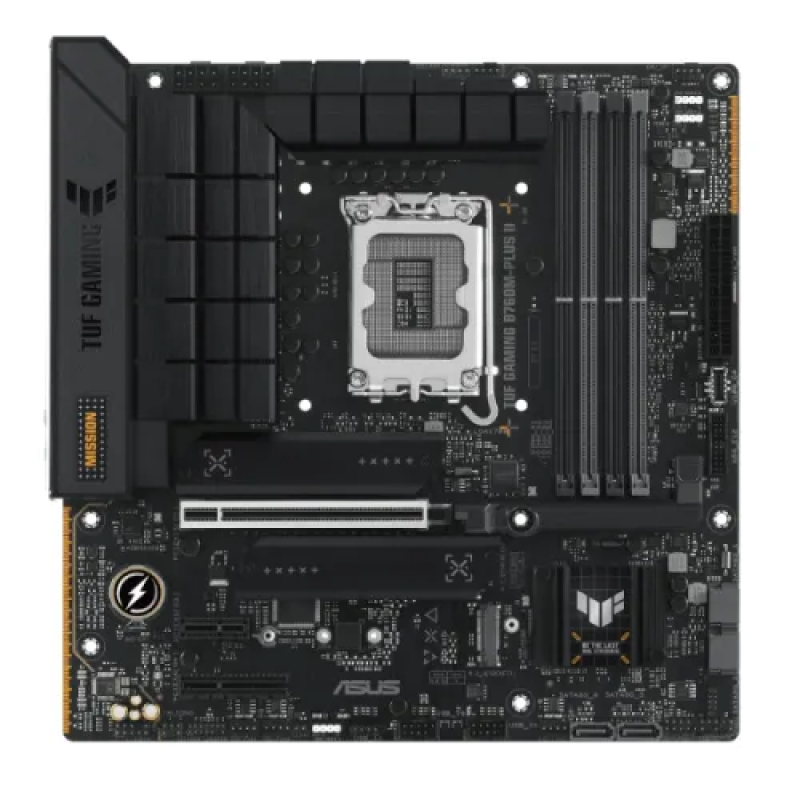

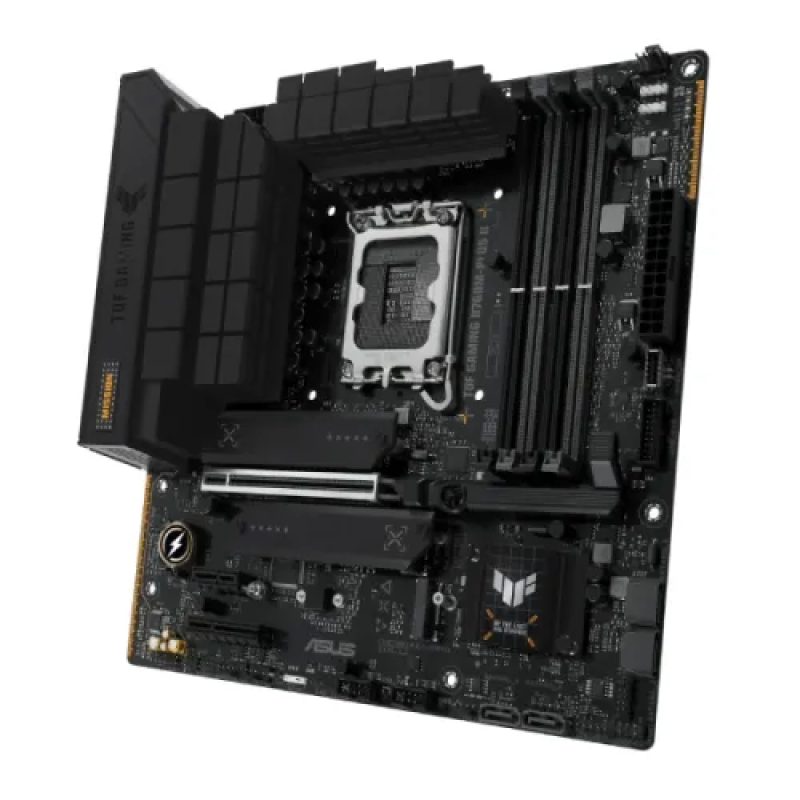

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

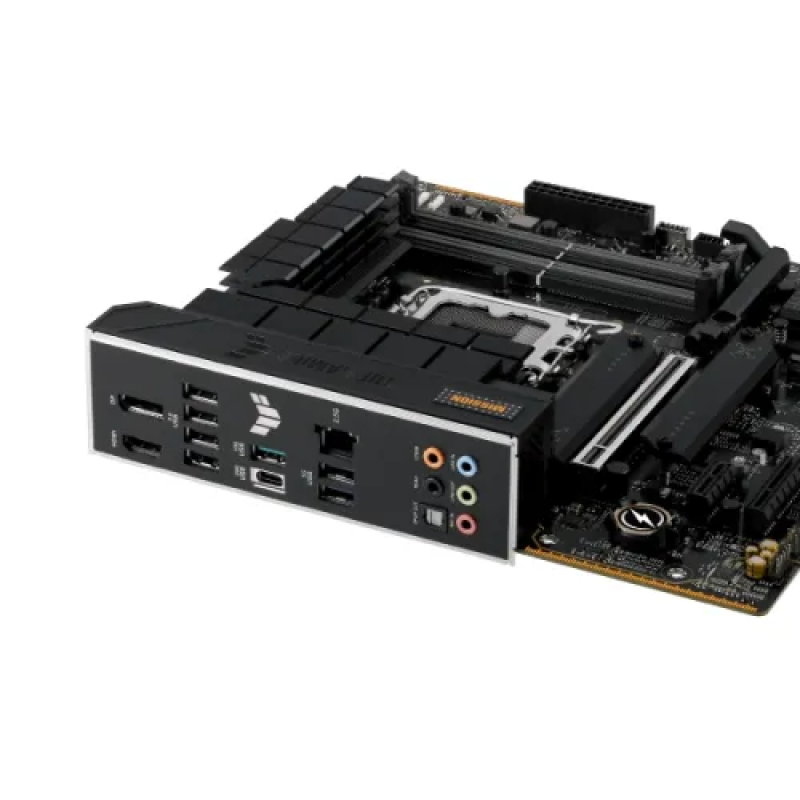

The ASUS TUF GAMING B760M-PLUS II is a powerful micro-ATX motherboard based on the Intel B760 chipset. It supports Intel Core 14th, 13th, and 12th Generation processors, including Pentium Gold and Celeron, using the LGA1700 socket. It supports Intel Turbo Boost Technology 2.0 and 3.0, which provides high-performance computing. This ASUS TUF GAMING B760M-PLUS II Motherboard has four DDR5 DIMM slots that can accommodate up to 192GB of memory at speeds up to 7800+MT/s (OC) in dual-channel architecture. It supports Intel XMP and ASUS Enhanced Memory Profile II (AEMP II) for better tweaking. The graphics output features one DisplayPort 1.4 and one HDMI 2.1 connector, both of which enable 4K at 60Hz. Expansion slots include a PCIe 5.0 x16 slot from the CPU, one PCIe 4.0 x4, and one PCIe 3.0 x1. The ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard has three M.2 slots and four SATA 6Gb/s connections for storage. It also supports RAID 0/1/5/10 with Intel Rapid Storage Technology. The network is powered by a Realtek 2.5Gb Ethernet with TUF LANGuard for increased stability and protection. A USB 20Gbps Type-C port, one USB 10Gbps Type-A, two USB 5Gbps Type-A, and four USB 2.0 connectors make up the rear I/O. The ASUS TUF GAMING B760M-PLUS II LGA1700 Motherboard front panel can accommodate up to eight USB ports, including USB Type-C and USB 5Gbps/2.0 headers. Realtek 7.1 surround sound, premium capacitors, audio shielding, optical S/PDIF out, and 24-bit/192kHz playback are all included in the audio specifications. The CPU, chassis, and AIO pump are all cooled via headers, as are the VRM and M.2 heatsinks. ASUS Q-Design features including M.2 Q-Latch, PCIe Q-Release, Q-DIMM, and Q-LED make assembly easier. The ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard also has Aura Sync with Gen 2 RGB headers, a pre-mounted I/O shield, ProCool connections, SafeSlot Core+, AI Noise Cancelation, and software like as Armoury Crate and Fan Xpert 2+. It supports Windows 11 and 10, making it suitable for long-lasting, efficient, and performance-driven PC setups.
