Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

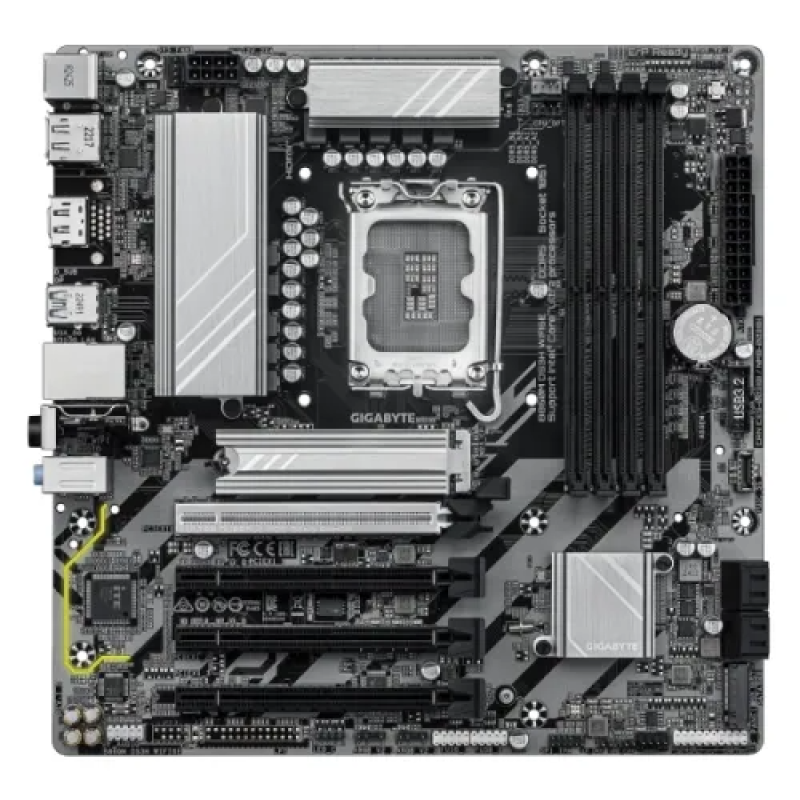

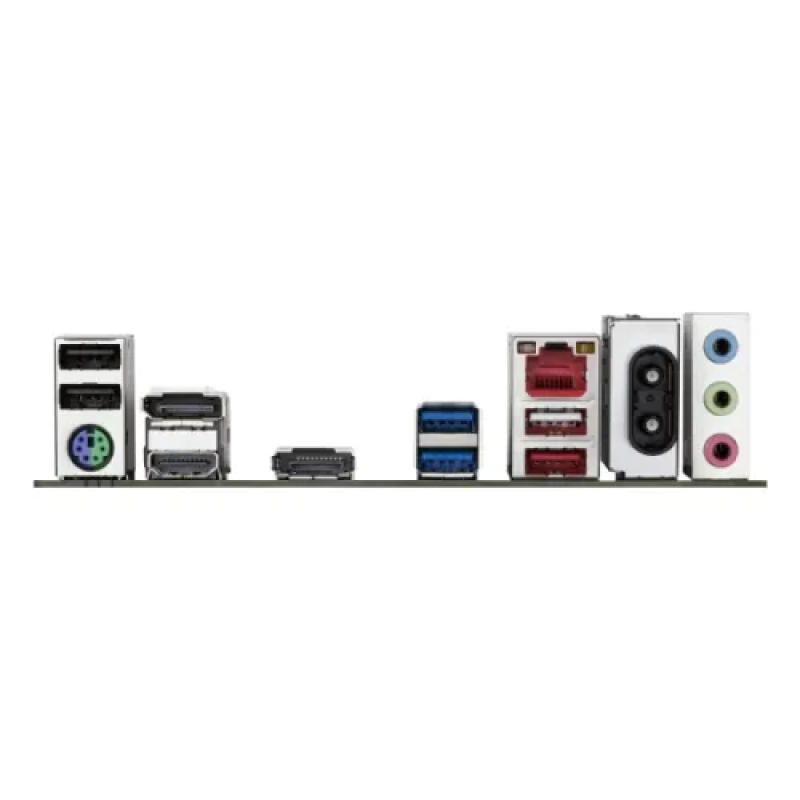

The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard supports Intel Core Ultra CPUs. Its Intel B860 Express chipset provides exceptional performance, with support for up to 256GB of DDR5 RAM and overclocking rates of up to 9066 MT/s. This dual-channel memory architecture improves multitasking and responsiveness, making it suitable for gaming, content creation, and professional applications. The Gigabyte B860M DS3H WIFI6E motherboard offers Intel HD Graphics, allowing for triple-display output via HDMI and dual DisplayPort connectors, with resolutions of up to 4096x2160 at 60Hz and 3840x2160 at 144Hz, resulting in smooth and immersive images. The Gigabyte B860M DS3H WIFI6E LGA1851 motherboard includes a PCIe 5.0 M.2 slot for high-speed NVMe SSDs, a second PCIe 4.0 M.2 slot, and four SATA 6Gb/s ports that support RAID 0, 1, 5, and 10. A PCIe 5.0 x16 slot is reserved for powerful GPUs or NVMe storage, while three PCIe 4.0 x1 slots are available for extra devices. The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard improves network connectivity with Realtek 2.5GbE LAN and Intel Wi-Fi 6E, which offer dual-band frequencies for quicker and more robust wireless connections, as well as Bluetooth 5.3 for easy device pairing. The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard has broad USB connection, including USB 3.2 Gen 2 and Gen 1 ports, as well as USB Type-C support.
